Our New QBFM & QCFM Injection Quill

QCFM Injection Quill

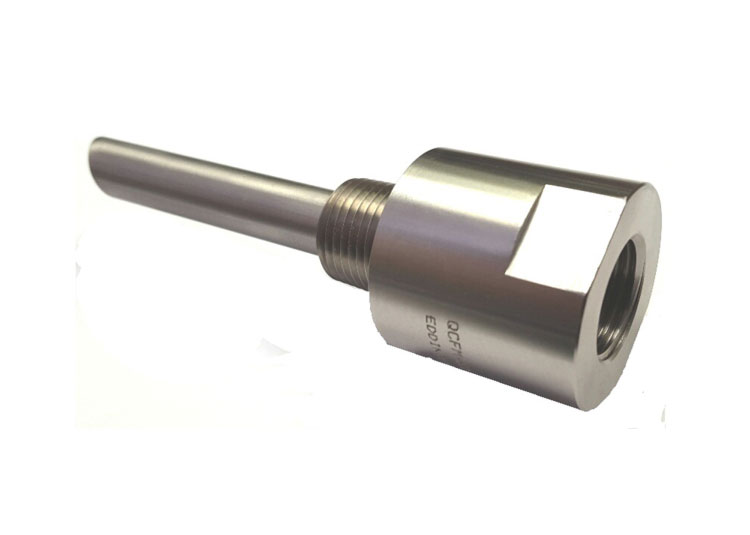

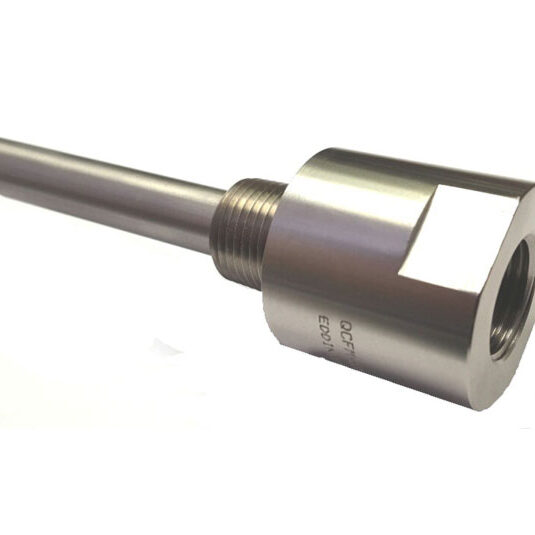

Eddington Injection Quill P/N: QCFM-316-050

  • The Eddington QBFM & QCFM Injection Quills offers MNPT process connections and ½” FNPT pump side threads to make installation of the hose going to the metering pump easier. Most metering pumps have 1/4″, 3/8″, or 1/2″ hose that is connected to the metering pump via compression fittings.  On the other end of the hose it is typical to have a 1/2″ MNPT connection that can be screwed into the Eddington injection quill on the FNPT side.
  • Quills made from Type 316 SS, Alloy 20, Hastalloy C276 can be used for high temperature, high pressure applications.
  • Crack pressure on the QCFM quills is 20 psi. If the pump cannot deliver 20 psi then a QBFM injection quill may be appropriate.
  • These quills are available in Type 316 Stainless Steel, PVC, Kynar, Alloy 20, and Hastalloy C276.
  • The QBFM has no check valve and is typically used with applications that require higher flow.  They are also used in applications that do not require a check valve or applications that require and external check valve.
  • The QCFM injection quills have built in ball check valves to prevent back flow through the nozzle and into the chemical feed line.
  • There are two flat surfaces on the external portion of the nozzle so that a wrench can be used during installation of the injection quill.
  • Install injection quill with telltale V notch facing into the flow for the most rapid dispersal of injected chemicals into the stream, there is a witness mark to identify the long end of the quill so installation is correct.
  • Standard quill length is 2 ¾” but custom lengths up to 24” are available. For additional lengths please add the quill length desired to the end of the Eddington part number (e.g. QCFM-316-050-18).

See Eddington’s QBFM-QCFM Product Data Sheet for more information on this new product!
